Epoxy Encapsulation Current Sense Transformer 38A 10kHz

Brand Name : Shinhom

Model Number : ACST2019 Series

Certification : RoHS

Place of Origin : China

MOQ : 5000PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Turns : 1:50,1:100,1:200,1:300

Frequency range : 10kHz to 1MHz

Specification : ROHS, CE, SGS

Isolation voltage : 3750V

Encapsulation : Epoxy

Application : Accurate measurement of current and power

Contact Now

ACST2019 Series PCB Mount High Precision Current Transformers with Up to 38A Maximum Current Range Available

FEATURES:

  • Frequency range: 10kHz to 1MHz
  • Designed for use with switching power supplies
  • This current sensing transformers are designed to
  • Meet UL/CSA/IEC 60950 Reinforced Insulation specification and provide 3 mm creepage/clearance between primary and secondary windings. Winding to winding
  • Reinforced insulation per IEC 380
  • Epoxy encapsulated construction
  • Materials meet requirement of UL94V-0
  • Meets IEC950 insulation requirements
  • 3750Vrms primary to secondary breakdown voltage
  • Current range: up to 38A maximum
  • Turns ratio: 1:50, 1:100, 1:200, 1:300 available
  • Operating temperature: -40 to 85°C
  • High frequency current transformers for SMPS appllications
  • High-permeability ferrite current transformers
  • Low-profile current transformers
  • PCB mount current transformers
  • Reliable linear performance transformers
  • Many differennt kinds of structure and style for your selection.
  • Custom-made are welcome.

NOTE:

  • Inductance is for the secondary, measured at 15.75 kHz, 1Vrms.
  • Volt-time product is for the secondary, based on 2000 Gauss.
  • Terminating resistance (RT) value is based on 1 Volt output
  • with 35 Amps flowing through the primary.Varying terminating
  • resistance increases or decreases output Voltage/Ampere
  • according to the following equation: RT = Vout × Nsec / Iin.
  • The maximum useable peak sense current (IPK) depends on
  • temperature riseor core saturation, which should be evaluated
  • for the operating conditions.
  • Ambient temperature range:-40℃ to +85℃.
  • Electrical specifications at 25℃.

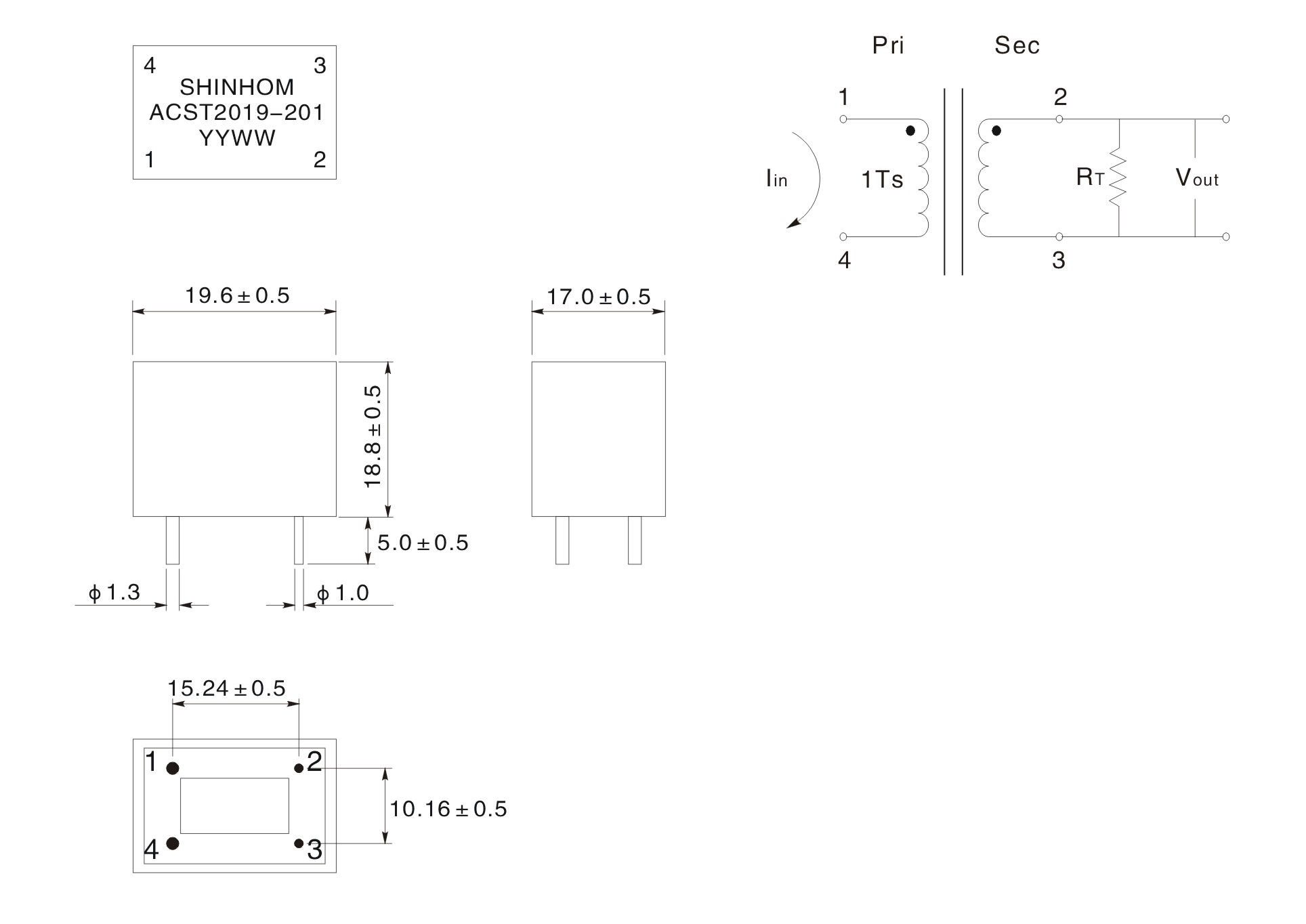

Epoxy Encapsulation Current Sense Transformer 38A 10kHz

Notes: Product specifications can be customized
