1.5uH - 4700uH Surface Mount Power Inductors Toroidal Power Inductor SMD

Name: 15uH 4700uH Surface Mount Power Inductors Toroidal Power Inductor SMD
Brand: Shinhom
Price: 1 USD

Wholesale 1.5uH - 4700uH Surface Mount Power Inductors Toroidal Power Inductor SMD from china suppliers

Brand Name : Shinhom

Model Number : STR30/38/44/50 Series

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Inductance : 1.5uH - 4700uH

Current up to : 18A

Installation : SMD

Test frequency : 10KHz

Core : Toroidal

Core material : Iron or silicon iron-aluminum

Contact Now

STR30/38/44/50 Series Surface mount toroidal power inductor for 1.5uH to 4700uH,SMD inductor,Power inductor

FEATURES:

Current rating up to 18 A
Toroidal core
RoHS compliant

APPLICATIONS:

DC-DC conversion(Paraller Mode)
Input filter(Serial mode)
EMI/RFI Suppression
Electrical equipments industry
Medical equipments industry
Communication equipments industry
The electric car charger industry
Vehicle electronic equipment industry

TECHNICAL INFORMATION:

Inductance test: 10KHz,0.1V
Operating Temperature,-55℃ to +105℃ (Temperature rise included)
Storage Temperature..-55℃ to +105 ℃
Resistance to Soldering Heat 260℃,10 sec.max.

ELECTRICAL CHARACTERISTICS:

STR30 Series

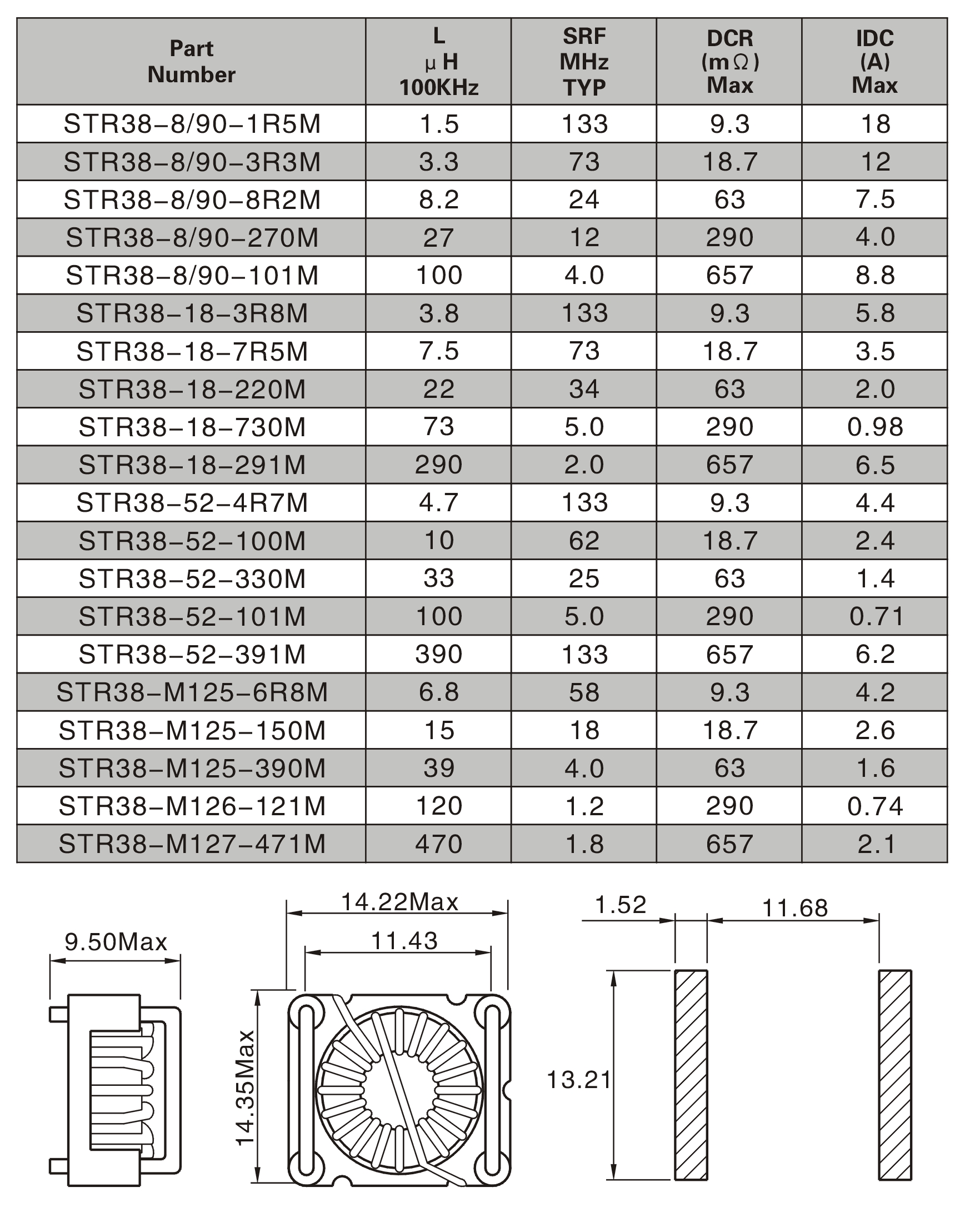

STR38 Series

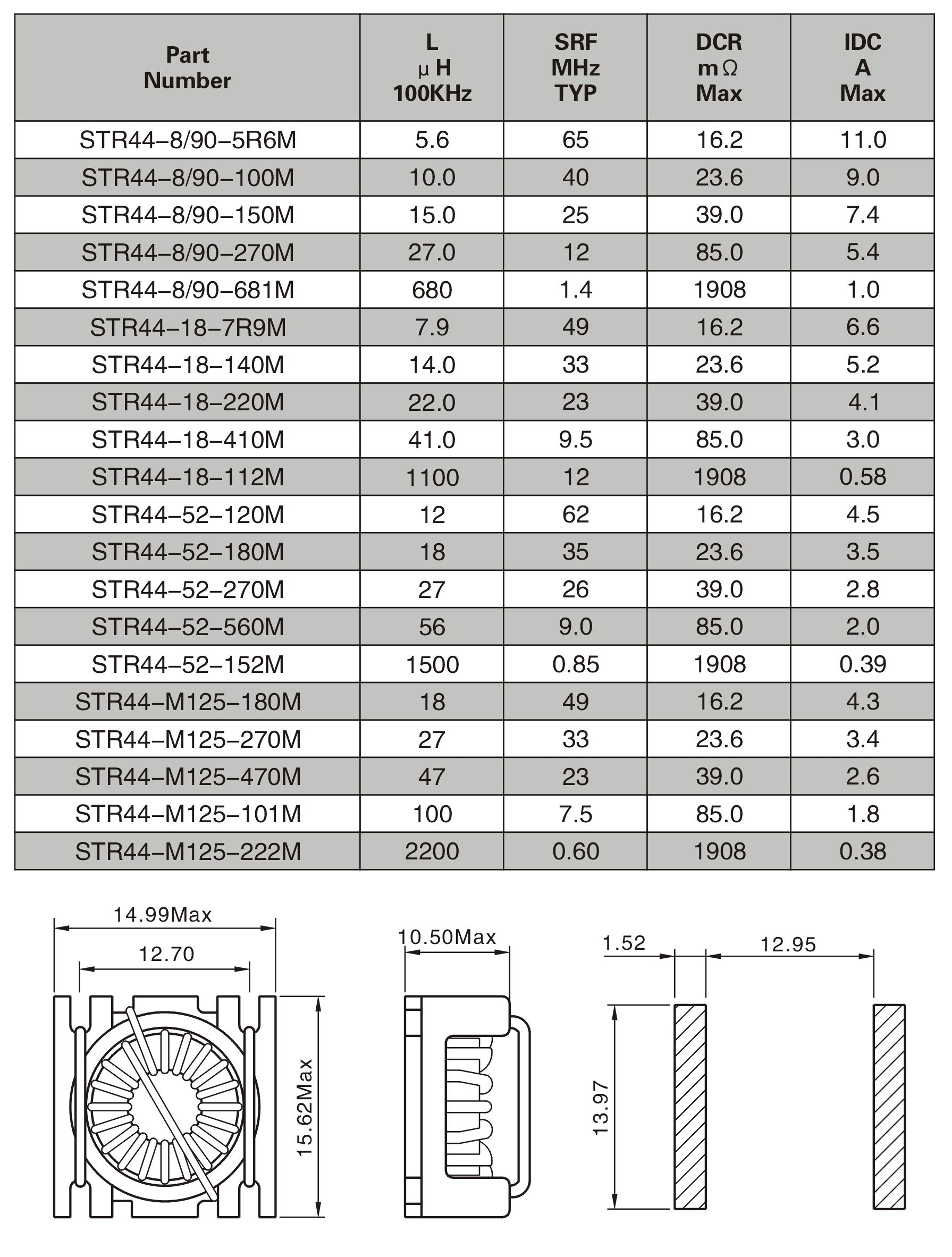

STR44 Series

1.5uH - 4700uH Surface Mount Power Inductors Toroidal Power Inductor SMD

STR50 Series

Note:1. K=±10%,M=±20%,N=±30%

Note: Product specifications can be customized.
