Reliable Through Hole Inductor Axial Power Inductor Wire Wound Construction

LCHA Series DIP Power Inductors Ferrite Rod Magnetic R Bar Unshielded Choke Coil Inductor,axial ul tube power chokes

Features:

• Wire-wound Construction
• Polyolefin Shrink Tubing
• Excellent Environmental Characteristics
• High Reliability
• High Inductance and Lower RDC
• Axial and radial leaded power inductor
• UL polyolefin shrinking tube
• Leaded inductor with ferrite core
• High-current
• High-reliability
• Low-resistance
• Radial choke inductors
• Axial lead fixed inductors

Applications:

• Output smoothly in Power Supply;
• Chopper Control;
• Output smoothly(LPF) in large current digital amplifier
• Switching Mode Power Supply output smoothing circuit;
• Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers;
• Other oscillation circuits
• Power Supplies
• SCR and TRIAC Controls
• RFI Suppression
• Filters
• Switching Regulators

Electrical specification​:

• Testing:LCR Bridge measured @ 1KHz 0.1V HP 4284A
• (Equivalent acceptable)
• RDC: QuadTech 1880 Milliohmmeter
• IDC Max: Lowers inductance by 10%
• Operating temperature: -55℃ to +125℃
• Shrink tube: Flame retardant UL type VW-1

Note: Product specifications can be customized.

leaded power inductor

through hole inductor

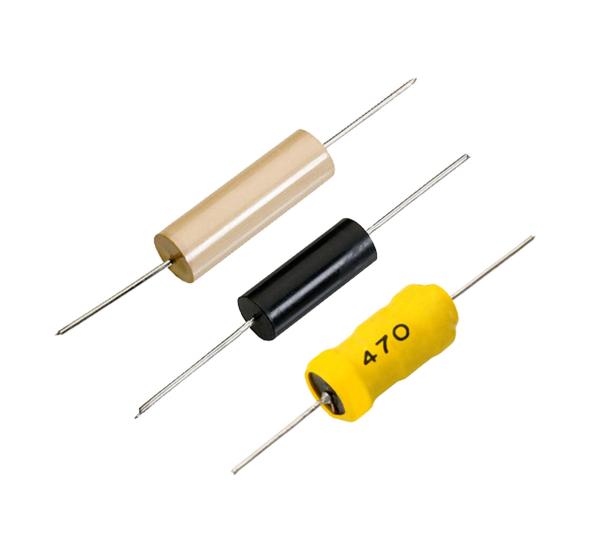

Reliable Through Hole Inductor Axial Power Inductor Wire Wound Construction Images
